4.5KW Tube Ice Making Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Yixing ICS
Certification:	ce

Payment & Shipping Terms:

Minimum Order Quantity:	1 - 1 Sets
Price:	$13,000.00
Packaging Details:	Wood cases and protection film for package, Ship in container
Supply Ability:	1 Set/Sets per Month

Contact Now

All Products

Flake Ice Maker Machine (75)

Block Ice Maker Machine (63)

Ice Tube Maker Machine (13)

Slurry Ice Machine (18)

Artificial Snowfall Machine (15)

Evaporative Condenser Chiller (11)

Cooler Refrigeration Units (12)

Aluminum Refrigeration Row (5)

Solar Power Containerized Cold Room (11)

Cold Storage Refrigeration Units (2)

Detailed Product Description

Ice Shape:	Bullet	Ice Storage Capacity:	None
Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	None	Showroom Location:	None
Condition:	New	Voltage:	220V/380V
Power:	4.5KW	Dimension(LWH):	13209501800 Mm
Weight:	4500kg	Warranty:	1 Year
After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support	Key Selling Points:	Automatic
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Gearbox, Engine, PLC, Other	Product Name:	Yixing ICS Tube Ice Machine
Type:	Automatic Ice Maker	Cooling Way:	Water Cooling/Air Cooling
Compressor:	Bitzer	Material:	Stainless Steel 304
Refrigerant:	R404a/R22a	Evaporator Inner Material:	Copper/Carbon Steel/Stainless Steel
Control System:	Automatic Control System	Application:	Drinks-Cooling
Ice Outlet:	22mm,28mm 35mm	Port:	Shanghai
Highlight:	4.5KW Tube Ice Making Machine , 4500kg Tube Ice Making Machine , 220V industrial ice making machine

Advanced 3ton/ Day Small Capacity Tube Ice Making Machine, High Quality Tube Ice Maker, Ice Tube Making Machines

Product Description

Product Name	Tube Ice Machine
Cooling Type	Water CoolingAir Cooling
Refrigerant	R22/R404A
Package	standard export packing
Input Power	380V/3P/50HZ
Ambient temp	30℃
Water inlet temp	25℃
condensing temp	42℃
Compressor running power	4.25kw
Installation power	6kw
Dimension	13209501800mm
Net weight	650kg

Product performance description

Tube ice machine is one kind of ice making machine. It is named for the regular cylindrical hollow Tube shape of the ice it
produces. The name of the produced ice cube is Tube ice. The contact area is the smallest of the existing ice types in the market with the best melting resistance. It is suitable for drinks, decoration, food ice storage and so on, so it is mostly edible ice.
The tube ice produced by tube ice machine is a kind of ice block with irregular length and hollow tube. Its inner hole is 5mm~15mm, and the length is 25mm~42mm. There are various sizes to choose from. The outer diameter of the ice is as follows: 22,
29, 32, 35 mm, etc. It is suitable for daily consumption, vegetable preservation and fishery products preservation.

Features of Tube Ice Machine

Pure Ice	Using Pre-PurifyTM water purification technology to filter the incoming water, the ice cubes are crystal clear.
Perfect Design	All the equipment adopts CAD-3D simulation assembly, which makes the arrangement of equipment parts and accessories and the direction of pipes more reasonable, compact structure and not crowded, and more humanized operation and maintenance.
Safety and Hygiene	Evaporator materials are made of stainless steel 304 and other materials, reaching the international health standards.
Efficient Performance	The evaporator adopts special processing technology, which makes the evaporator have better thermal conductivity.
Energy Saving And Water Saving	Each compressor condensing unit is equipped with heat exchange of return pipe and liquid supply pipe, control of evaporation temperature and condensation temperature, superheat of return gas and oil return, so as to ensure stable operation of compressor unit under safe working conditions.
High Quality Accessories	More than 80% of the refrigeration equipment accessories produced by Ice Source use well known brands at home and abroad. For example, Bitzer is used for the compressor. Hansen, Danfoss, Emerson and other world famous brands are used as refrigeration accessories.
Customized	The refrigeration equipment produced by Ice Source can operate normally under the working conditions of -20~+50℃ and water inlet temperature of +0.5~+45℃. The company can not only provide all kinds of standard refrigeration equipment for you but also customized the refrigeration system under special working conditions according to the actual needs.
Stable and Reliable	Perfect design, reduce the equipment internal unnecessary transmission parts, so that the equipment more simple and reliable. The unit is generally equipped with low water level, water flow, full ice, high pressure compressor, low pressure of compressor, oil pressure of compressor, et., so that the equipment can operate stably, reliably, and safely, and can operate continuously for more than 3000 hours without fault.
Standardization	Most of the products have been standardized, so that the production quality and processing technology are more mature and the quality is more guaranteed.
Fully Automatic	PLC computer module automatically controls ice making process at a glance.

Details Images

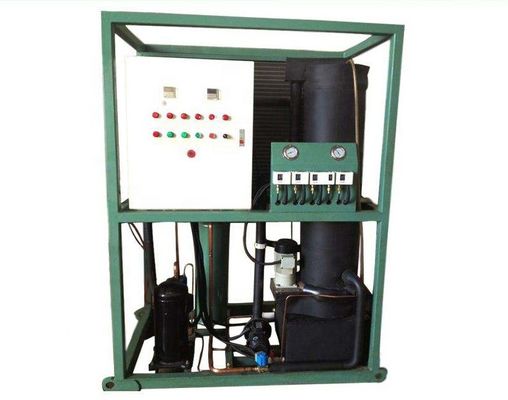

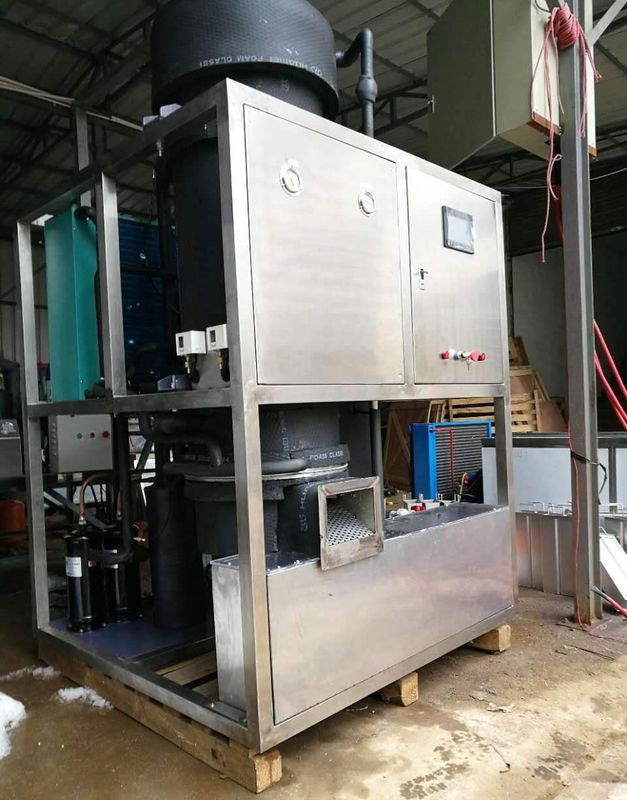

Structure

The structure of tube ice machine mainly includes evaporator, condenser, water storage tank, compressor and liquid storage tank.

Among them the evaporator structure is the most complex, the accuracy requirement is the highest and the manufacturing difficulty
is the biggest.

Classification

Tube ice machine can be divided into small tube ice machine and large tube ice machine according to the daily output ( According to the international standard of working conditions: dry bulb temperature of 33°C, inlet water temperature of 20°C ) . The daily ice production of small tube ice machines ranges from 1 ton to 8 tons, and most of them are single structure. The daily ice production of large tube ice machine is from 10 tons to 60 tons, most of which are compound structure and need to be equipped with cooling tower.

Ice making process
Ice making ---Ice collecting/delivering---
Ice Packing and weighing---
Ice storage

Ice shape choice
Choice 1-S:φ22*H35mm,inner hole 5mm,12g. Choice 2-M:φ28*H40mm,inner hole 8mm,20g. Choice 3-L:φ35*H50mm,inner hole 12mm,42g

Product Usage

- Product usage

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Standard export packing

Wood cases and protection film for package, ship in container

Company Introduction

Yixing city Ice Source Refrigeration Equipment Limited is a comprehensive modern manufacture of all kinds ice making plants, cold room, high-efficiency cold air blower, energy-saving evaporative condenser, aluminum alloy pipe row and various civil constructions, combined with cold room engineering.

ICS is located in Yixing, Wuxi, Jiangsu, CHINA. With over 20 year's successful experience in Chinese market, we focus on the technical innovation to improve the machine quality and strengthen innovation ability. By insisting on the spirit "unity, seeking truth, pioneering and dedication", we commit ourselves to research and development of new technology, striving to create a comprehensive refrigeration enterprise in China.

Our Services

Pre-sale service

* Inquiry and consulting support
* Sample testing support
* View our Factory

After-sale service

* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas
